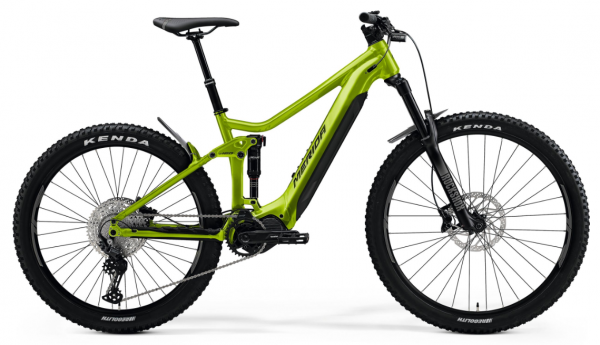

MERIDA eONE SIXTY 500

$6,999.00

The eONE-SIXTY range comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

This bike also comes with the ‘Internal Block’ first introduced in 2015. The e-bike version of the ‘Internal Block’ is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

The eONE-SIXTY features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor. To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5″ tyre and a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness and traction. Specifically located openings on the carbon models near the head tube which work like a chimney and allow the warm air to dissipate to guarantee the optimum operating temperature of the internal battery.

The ‘Thermo Gate’ enables the battery to perform at its best, in any condition. Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.



Description

01. FRAME eONE-FS LITE III; MAT aluminium; 150 STR; 29/27.5″ WHS; 148×12 AST; intube; max. 630 Wh
02. SIZES XS-S-M-L-XL
03. FORK Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset
04. REAR SHOCK Rock Shox Deluxe Select+
05. DRIVE UNIT Shimano EP8; 85Nm
06. BATTERY Shimano E8036; 630Wh Shimano E8035 (504Wh) for XS size only
07. BATTERY CHARGER Shimano EC-E6002; 2A
08. DISPLAY Shimano SC-E5003
09. SWITCH
10. REAR DERAILLEUR Shimano Deore RDM5100 11
11. SHIFTERS Shimano Deore M5100 11
12. BRAKE – FRONT Shimano M4100; 4 piston
13. BRAKE – REAR Shimano M4100; 4 piston
14. ROTOR – FRONT Shimano RT30; 203 mm
15. ROTOR – REAR Shimano RTEM300; 203 mm
16. CHAINRING Shimano CRE70B; 34 Tooth
17. CRANK Shimano FCEM600; 165 mm for all sizes
18. CHAIN HG601-11
19. CASSETTE Shimano M5100; 11-51 ATC; 11 speed
20. PEDALS VP; VPE-537
21. HANDLEBAR MERIDA Expert eTR; 780 Wide; 20 Rise
22. HANDLEBAR STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
23. STEM LENGTH 40 mm all sizes
24. SEAT POST MERIDA COMP TR; 30.9 DSP; 0 SSB; XS 100 SPT – S/M 125 SPT – L/XL 150 SPT
25. SADDLE MERIDA Comp CC; V-mount
26. HUB – FRONT Shimano MT400-B; 110×15 WHF; 32 SPH; Centerlock
27. HUB – REAR Shimano MT400-B; 148×12 WHR; 36 SPH; Centerlock
28. AXLE – REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
29. RIMS MERIDA COMP TR; 29 IWR; MAT aluminium
30. TYRE – FRONT Kenda Regolith; 29×2.4″; wire
31. TYRE – REAR Kenda Regolith; 27.5×2.6″; wire
32. MUDGUARD C093-02F + C093-02R
33. LIGHT FRONT E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
34. LIGHT REAR USB REAR Light CG-214RG
35. OTHER MERIDA Power Button, CAP-045
