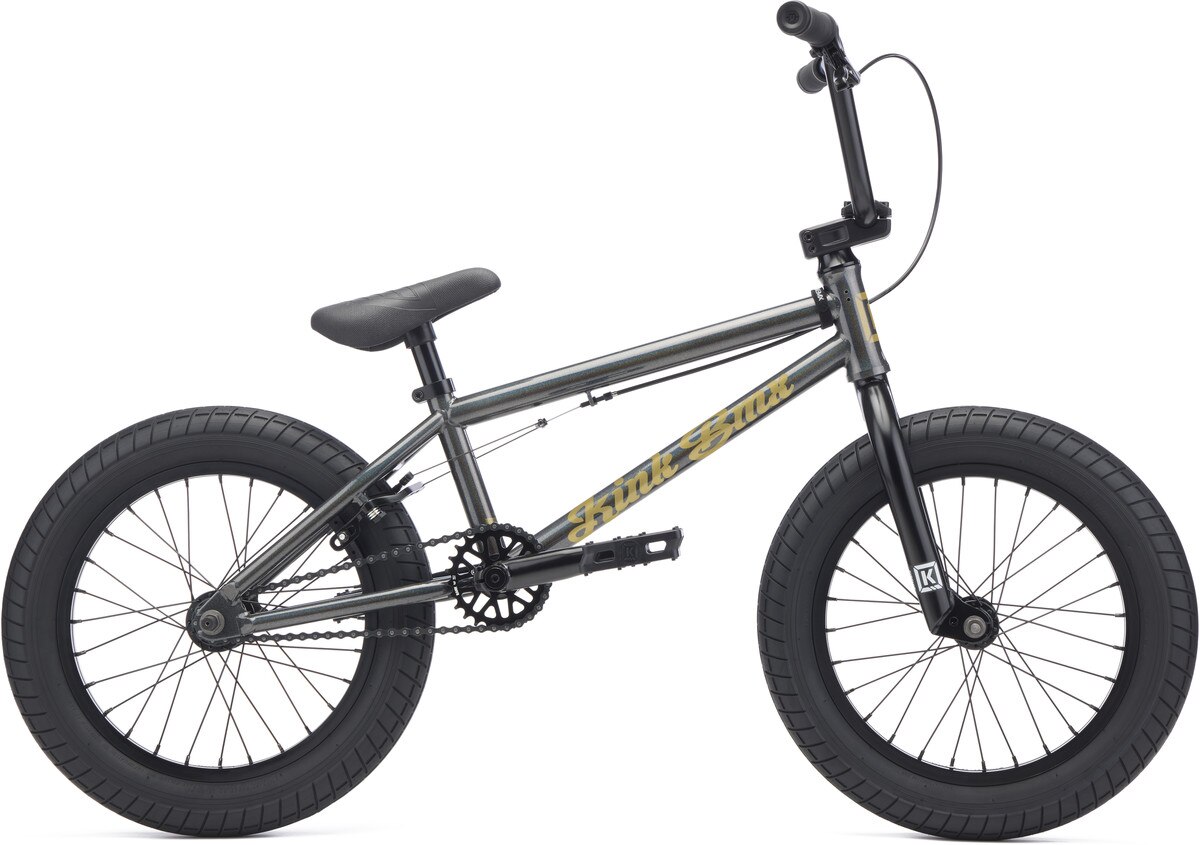

KINK CARVE 16″

$639.00

The Kink Carve 16″ bike is the younger sibling of our Kicker 18″, and it ensures every age and every height rider can find a perfect-fitting Kink bike. Kids are getting into BMX younger and younger, and we love it.

Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18″ bike yet. Still stacked with great parts, the 2021 Carve comes with 7″ Kink T700 bars, a short reach 40mm Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and modern tread design 2.4″ tires.

Categories: , , , , , Tags: ,


Description

01. FRAME 100% HiTen
02. TOPTUBE 16.5″
03. CHAINSTAY 11.25″
04. HEADTUBE 74.5 degrees
05. SEATTUBE 71 degrees
06. STANDOVER 6.75″
07. BOTTOM BRACKET HEIGHT 9.75″
08. FORK Kink Stryker Fork 4130 Chromoly Steerer Tapered Fork Legs
09. HANDLEBARS Kink T700 Bar 7″ 100% Hi-Ten Steel
10. GRIPS Mission Mini Helix Grip
11. BAR ENDS Mission Phase Bar Ends
12. STEM Mission Topload 40mm
13. HEADSET Mission Sealed Integrated (41.8 x 45)
14. BRAKE LEVER Mission Mini
15. BRAKE CABLE Mission L1 Linear
16. BRAKES Mission Cease V2
17. BRAKE MOUNTS Welded
18. CRANKS Mission Triumph 3pc Tubular Chromoly 140mm – 8 Spline
19. BOTTOM BRACKET Sealed Mid 19mm
20. PEDALS Kink Hemlock Pedals
21. CHAIN Mission 410
22. SPROCKET Mission Rank 25T
23. FRONT HUB Mission Covert Unsealed 3/8″ Axle
24. REAR HUB Mission Function Semi-Sealed Cassette 14mm
25. DRIVER 9 Tooth
26. FRONT RIM Mission X7
27. REAR RIM Mission X7
28. SEAT Mission Cypress Mini Combo
29. SEATPOST Mission Combo Steel Post
30. SEAT CLAMP Mission Slim Clamp
31. FRONT TYRE Mission Tracker 16×2.4″
32. REAR TYRE Mission Tracker 16×2.4″

Additional information

color

Gloss Iridescent Black
size

16"
