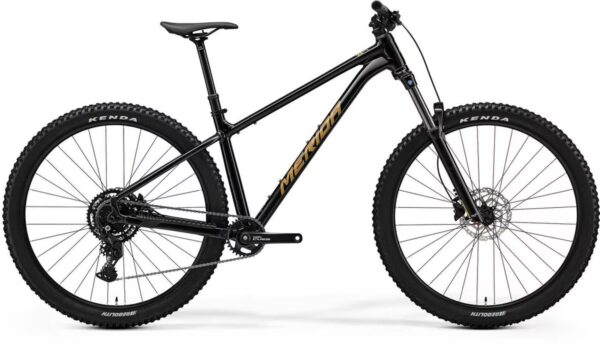

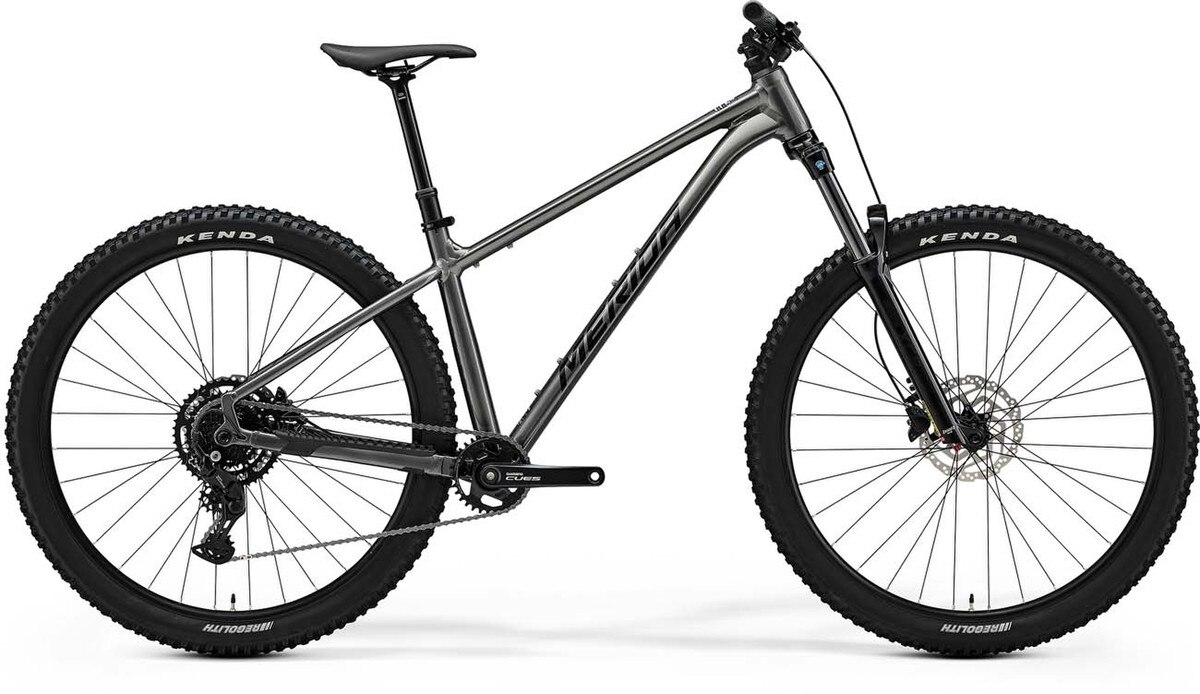

MERIDA BIG TRAIL 300
MERIDA BIG TRAIL 300


MERIDA BIG TRAIL 300

$1,599.00

While clearly a trail loving long-travel hardtail, our new BIG.TRAIL also offers built-in versatility through hidden rack, fender and kick stand mounts in case you like to turn the BIG.TRAIL into a ‘SUV’ commuter.

Ability to fit two water bottles into the frame without making the bottles difficult to reach. Perfect for long marathon races and extended trail sessions.
Our BIG.TRAIL rolls on 29er wheels and has tyre clearance for up go 2.5″ trail tyres. The combination of 29er wheels and 2.5″ tyres offer plenty or corner and climbing grip, while the big tyre volume and the 29er ‘rolling over ability’ give our trail hardtail extra comfort and stability.
The new ‘Trail Mount’ is positioned underneath the top tube/seat tube junction and these ingenious fixing points makes fitting an additional tool or a pump a breeze. The ‘Trail Mount’ offers a real advantage if you prefer to keep the weight off your back or if you are heading out for an extra-long outing where you might need to carry additional gear.
We feature internal cable routing on all models. Cables are routed through the frame, entering and exiting through smooth sockets. Only a clever system for our internal guiding and fixing guarantees reliable and rattle free routing, whilst the cables are protected from moisture and dirt and gives the bike a cleaner look.
A long reach, paired with a slack 65.5° head angle and a steep seat angle make our BIG.TRAIL a solid descender even when the trail is littered with roots and rocks, while maintaining impressive climbing abilities, due to the central seating position over the bottom bracket. The extra short seat tube and low stand over height help to create lots of space to manoeuvre the bike when the trail gets demanding but also allow for long travel dropper posts.
Most models offer Boost technology at the front and rear. The shallower axle standard of 110 mm (front) and 148 mm (rear) allows for a wider spoke angle, resulting in a stiffer and stronger wheel, hugely beneficial on these bikes given the impacts they endure. The BIG.TRAIL 200 has 100 mm fork spacing.

Available on back-order

Categories: , , , , Tags: , ,


Description

01. FRAME BIG.TRAIL TFS; MAT aluminium; 29 WHS; 148×12 AST; BSA BBR
02. SIZES S-M-L-XL
03. FORK Suntour XCR34 LOR; Air; 140 STR; Tapered; lockout; 51mm fork offset
04. GEARS 1 x 10
05. CRANKSET Shimano CUES UT- U4000 32T
06. CRANK LENGTH 170 mm
07. BOTTOM BRACKET Shimano BSA 68/73-24mm; threaded
08. CASSETTE ShimanoTC; 9 Speed
09. CHAIN KMC X11 NPBK
10. CHAINGUARD –
11. FRONT DERAILLEUR –
12. REAR DERAILLEUR Shimano CUES U4000
13. SHIFTER – FRONT Shimano SL -MT500-IL
14. SHIFTER – REAR Shimano CUES U4000
15. BRAKES Shimano MT200
16. ROTOR – FRONT Shimano RT10; 180mm
17. ROTOR – REAR Shimano RT10; 180mm
18. HANDLEBAR MERIDA EXPERT CC; MAT aluminium; 760 Wide; 10 Rise
19. STEM MERIDA COMP CC; MAT aluminium; 31.8 Diameter; 6 degree Angle
20. STEM LENGTH 50 mm all sizes
21. HEAD SET MERIDA M2345
22. SEAT POST MERIDA COMP TR; 30.9 Diameter; 0 Setback; S: 125 SPT – M/L/XL: 150 SPT
23. SADDLE MERIDA COMP CC
24. HUB – FRONT Shimano MT400-B; 110×15 WHF; 32 Spokes; Centerlock
25. HUB – REAR Shimano MT400-B; 148×12 WHR; 32 Spokes; Centerlock
26. AXLE – REAR MERIDA COMP TR; including removeable lever, 6 allen key
27. SPOKES Black stainless
28. RIMS MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
29. TYRES Kenda Regolith; 29×2.4″; wire
30. PEDALS VP VPE-891

Additional information

color

SILK DARK PURPLE (SILV/PURP)
Wheel SIze

29"
size

Large, Medium, Small, X Large
