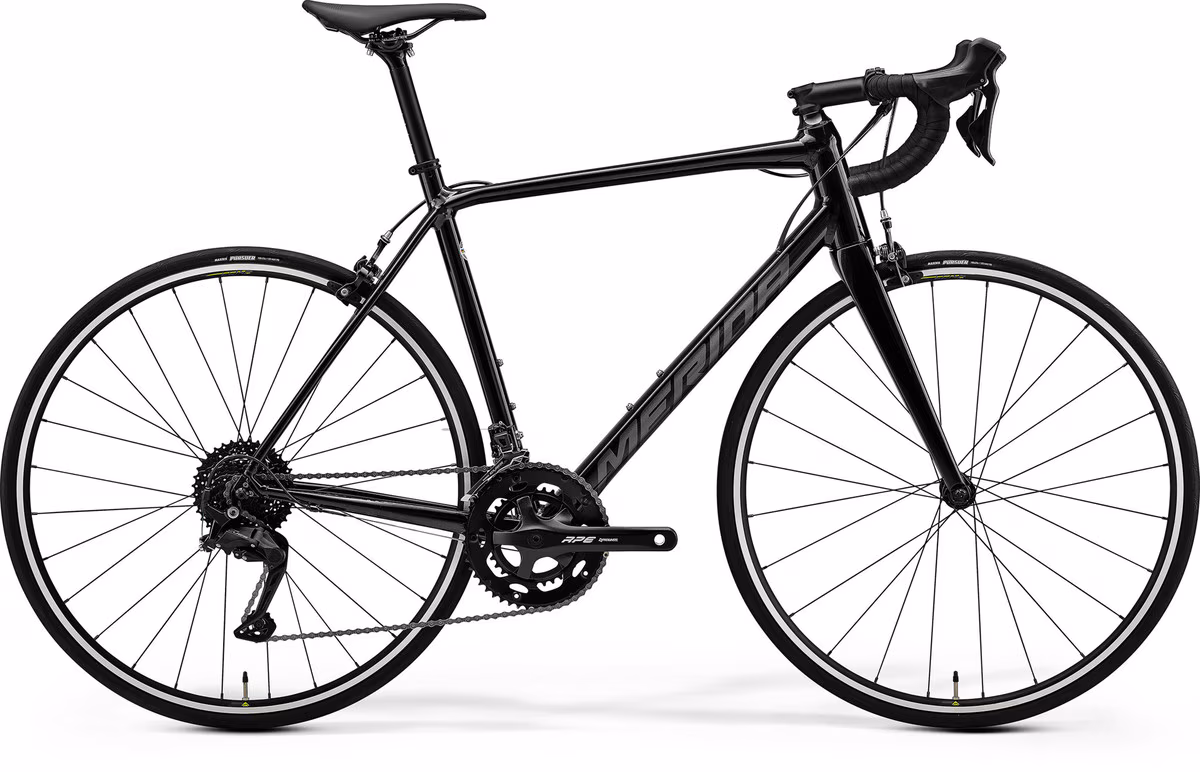

Merida Scultura Rim 100
Merida Scultura Rim 100


Merida Scultura Rim 100

$1,399.00

The Merida Scultura Rim 100 is a lightweight aluminium road bike built for speed, efficiency, and everyday performance, featuring a responsive SCULTURA LITE frame, a smooth‑riding full‑carbon CF2 fork, and a dependable Shimano Claris 2×8 drivetrain that delivers crisp shifting on climbs and fast flats. With dual‑pivot rim brakes, Maxxis Pursuer 700×25C tyres, and Merida’s quality cockpit components, it offers confident handling and long‑lasting comfort, making it an ideal choice for new and progressing riders seeking a fast, reliable, and great‑value road bike.

Categories: ,


Description

01. FRAME SCULTURA LITE aluminium frame, BSA bottom bracket, 700×25C max tyre size, 100×9 / 135×9mm axle standard
02. SIZES XXS, XS, SM, SM/MD, MD/LG, LG, XL
03. FORK SCULTURA RIM CF2 full carbon fork, 700×25C max tyre size.
04. GEARS Shimano Claris 2×8-speed drivetrain.
05. CRANKSET FSA Tempo 50–34T (length varies by size: 165–175 mm).
06. CRANK LENGTH 165 mm (4XS–XXS), 170 mm (XS–S), 172.5 mm (SM–ML), 175 mm (L–XL)
07. BOTTOM BRACKET FSA TH‑7420ST cartridge bearing
08. CASSETTE Sunrace 8‑speed cassette (from drivetrain spec).
09. CHAIN Sunrace CN‑M84
10. FRONT DERAILLEUR Shimano Claris
11. REAR DERAILLEUR Shimano Claris GS
12. SHIFTERS Shimano Claris.
13. BRAKE LEVERS Shimano Claris.
14. BRAKES Lee Chi ROAD dual‑pivot rim brakes.
15. ROTORS  –
16. HANDLEBAR MERIDA EXPERT SL aluminium, width varies by size (380–440 mm).
17. HANDLEBAR STEM MERIDA COMP CC aluminium, -6°, 70–110 mm depending on size.
18. STEM LENGTH 70 mm (4XS–3XS), 80 mm (XXS–XS), 90 mm (S), 100 mm (SM–ML), 110 mm (L–XL).
19. HEADSET MERIDA M2341
20. SEAT POST MERIDA COMP CC aluminium, 27.2 mm, 5 mm setback
21. SADDLE MERIDA COMP SL V‑mount.
22. HUB-FRONT Road sealed‑bearing hub, 100×9 mm, 24H
23. HUB-REAR Road sealed‑bearing hub, 130×9 mm, 28H.
24. AXLE-FRONT Quick‑release 9 mm.
25. AXLE-REAR Quick‑release 9 mm.
26. SPOKES Black stainless steel
27. RIMS MERIDA COMP SL aluminium, 17 mm inner width, 20 mm height
28. TYRES Maxxis Pursuer 700×25C (front & rear)
